Nickel mesh is mainly used for sieving under acidic and alkaline environmental conditions and separation of gas, liquid and other media. The choice of weaving method mainly depends on the purpose.
Nickel mesh materials generally choose Ni4, Ni6 mesh, thickness 0.04mm-5mm, minimum mesh 0.3×0.6mm, maximum 30×60mm
There are five ways to weave nickel mesh: plain weave, twill weave, flat Dutch weave, twill Dutch weave and reverse Dutch weave. The specifications of the nickel mesh are from 1 mesh to 330 mesh.

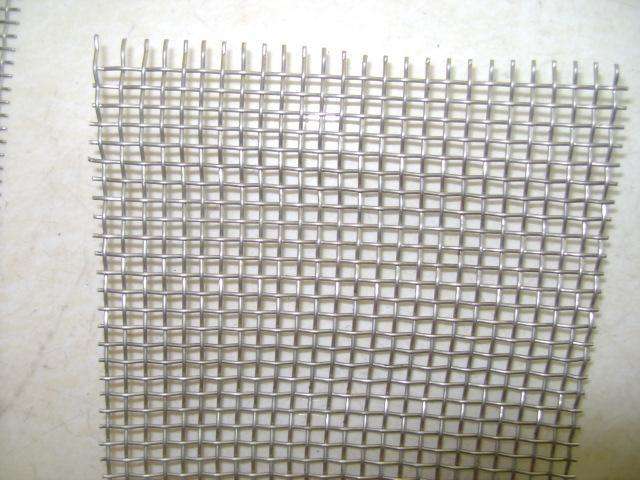

1. Plain woven nickel net:
It is the most common weaving method, the main feature is the same diameter density of warp and weft.
2. Pure nickel square grid
Nickel square mesh is suitable for petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries. Nickel wire is woven into various specifications of mesh and cloth, which has good acid resistance, alkali resistance and high temperature resistance.
3.Pure nickel dense mesh
Material: Nickel wire weaving: plain weave nickel dense mesh, twill weave nickel dense mesh, bamboo flower woven nickel dense mesh. Performance: stable, fine filtering performance. Uses: used in aerospace, petroleum, chemical and other industries.
Nickel mesh is classified according to the weaving method: 1, plain weave 2, twill weave 3, plain Dutch weave 4, twill Dutch weave
The specifications of the nickel mesh are from 1 mesh to 330 mesh.
Material—n6
Uses: used for screening and filtering under acidic and alkaline environmental conditions.

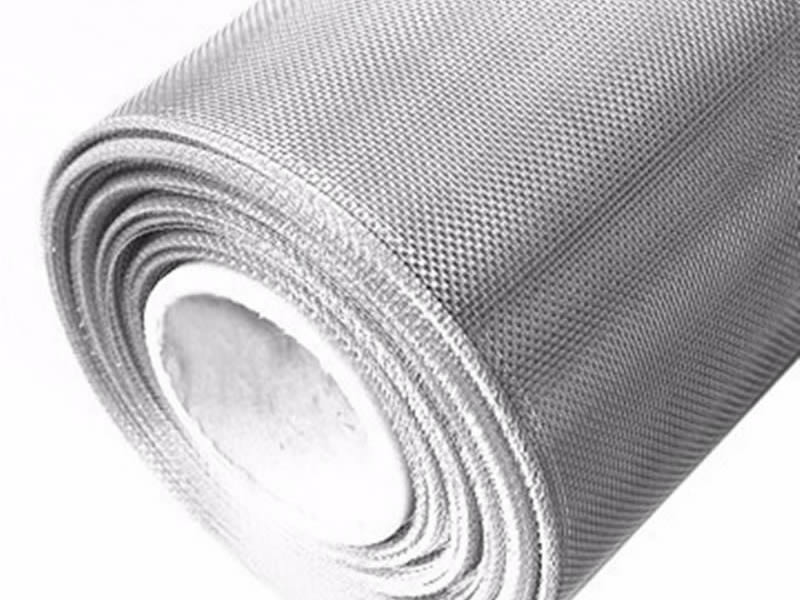

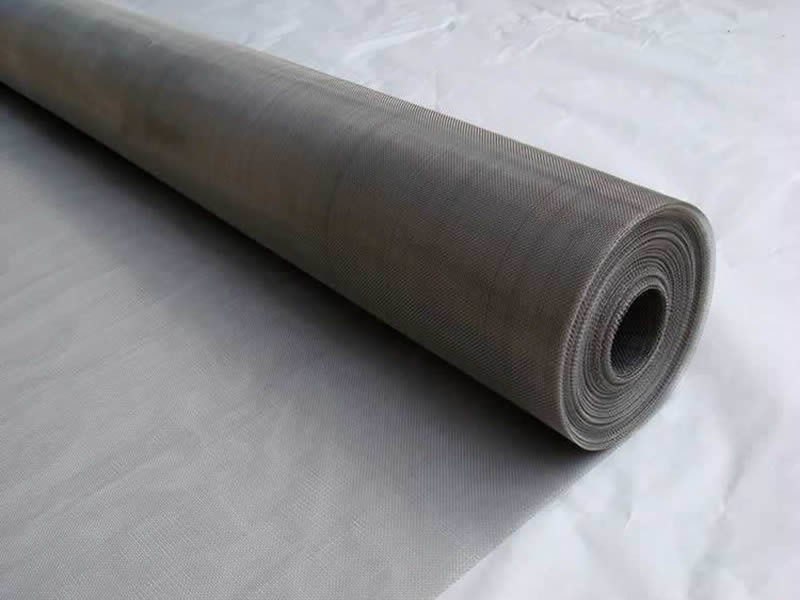

1. Nickel wire woven mesh
It is made of nickel wire woven through warp and weft, and the mesh is usually square.
Mesh number: 1-200 mesh
Nickel wire material: Ni4, Ni6, nickel-chromium alloy wire, nickel-copper alloy wire
Net width, net length and special specifications can be customized according to requirements.
2. Nickel plate (or nickel foil) stretched mesh
It is made of nickel plate or nickel foil by mechanical stamping and stretching, and the mesh is diamond-shaped.
Special requirements such as net length and net width can be customized according to customer requirements.
3. Nickel plate (or nickel foil punching net)
Mechanically stamped from nickel plate or nickel foil
Net thickness: 0.04-9mm
Net width 4mm-1200mm
The grid includes: round holes, long round holes, semicircular holes, square holes, rectangular holes, flat holes, triangular holes, hexagonal holes, diamond holes, trapezoidal holes, etc. 151-2783-5610
Other specifications can be customized according to requirements.
4. Nickel wire woven net is also called nickel wire vapor-liquid filter net, foam net, foam net, shielding net cover, etc. It is a woven net knitted with special crochet needles and is widely used. in · Production. In special cases, wire mesh defogger, air filter, oil and gas separation, dust removal filtration, gas-liquid separation, internal combustion engine filter components, electromagnetic shielding, etc.
Net width: 25mm-600mm
The mesh size, filter density and other specifications can be customized according to requirements.
The characteristics of nickel mesh: nickel mesh has good performance in anti-corrosion, conductivity, shielding, etc. Mainly used for battery electrodes, current collectors, radiation shielding and filtration of special gases and liquids.
